quote:

Orijinalden alıntı: 0ldskool

Selam,

Evet mumkun. Ben bu sekilde uzun sure kullandim. Tam tarif ettginiz gibi ayri bir Wi-Fi yayini sadece VPN ile trafige cikarttim.

Roku TV uzerinde ABD kanallari, Netflix, BBC iPlayer gibi geo-blocking uygulanan servisler ve TR'de bulunmayan icerikleri yurtdisi VPN ile rahatca izleyebiliyordum.

Takip ettigim rehberi kaydetmistim zamaninda paylasayim:

Assuming you don't have IPv6, have OpenWRT 22.03 with LuCI and already have:

• one interface (wan) with a default route in the wan firewall zone

• one bridge for your lan

• one interface (lan) with static ip and dhcp in the lan firewall zone

• a wifi ap attached to that interface (lan)


You need to create:

• an empty bridge with no ports attached, select "bring up empty bridge", name it brvpn

• a new interface on a different subnet from your lan interface (example: 192.168.71.1, netmask 255.255.255.0), add it to the lan firewall zone, select the bridge you just created, name it vpnlan, enable dhcp

• go to "DHCP Server" -> "Advanced Settings" and in DHCP-Options add:

• 6,1.1.1.1,1.0.0.1

• (or whatever public DNS you want to use) as otherwise you'll end up using your main DNS server without going through the VPN and leak your DNS requests

• create a new wireguard interface, name it vpnwan, add it to the wan firewall zone, click load configuration and import it

• check "no host routes" on the "general settings" tab

• go to "peers" then select the only peer, and disable "Route Allowed IPs"

• make sure that "Allowed IPs" is 0.0.0.0/0

• create a new wifi ap attached to that interface (vpnlan)

• go to "Routing" -> "Static IPv4 Routes", then add a new route to 0.0.0.0/0 interface vpnwan, in advanced settings, in "Table" put 3 (or any number except 0, 253, 254 or 255)

• go to "IPv4 Rules" and add a rule: "Source" - your vpnlan network (in the above example: 192.168.71.0/24), "Table" 3 (or the number you put in the step above)


kaynakhttps://www.reddit.com/r/openwrt/comments/yyhm7i/one_router_one_wireguard_vpn_two_ssids

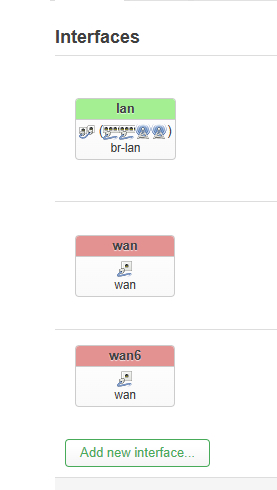

Interface'ler boyleydi:

iptv: turkcell superonline tvplus
lan: yerel ag 192.168.1.1/24
ont: gpon ont cihazinin web arayuzu icin bir interface
vpnlan: wireguard icin ayri bir local blok 192.168.33.1/24 (VPN'li wifi bu bloktan ip dagitiyor)
vpnwan: wireguard interface
wan: turkcell superonline internet baglantim

< Resime gitmek için tıklayın >
