SPECIFICATION ModelBXNUC10I5FNHProcessorA soldered-down 10th generation Intel Core i5-10210U Quad-Core Processor with a maximum 25W TDP, 1.6GHz base , 4.2GHz Turbo, 8Threads
Intel UHD Graphic
6MB Intel Smart Cache
Integrated memory controller
Intergrated PCH
Memory Two 260-pin DDR4 SDRAM Small Outline Dual Inline Memory Module (SO-DIMM) sockets
Support for DDR4 2666 MHz SO-DIMMs
Support for 8Gb and 16 Gb memory technology
Support for up to 64 GB of system memory with two SO-DIMMs using 16GB memory technology
Support for non-ECC memory
Support for 1.2 V low voltage JEDEC memory only
Note: 2Gb and 4Gb memory technology (SDRAM Density) is not compatibleGraphicsIntegrated graphics support for processors with Intel® Graphics Technology
One High Definition Multimedia Interface* (HDMI*) v2.0b Back panel connectors
One DisplayPort signal via USB Type C back panel connector
AudioIntel High Definition (Intel HD) Audio via the HDMI and USB Type C interfaces through the processor
Realtek HD Audio via a stereo microphone/headphone 3.5mm jack on the front panel
Digital microphone array (DMICS) connector (Internal)
StorageSATA Port: One SATA 6.0Gbps port (black) for 2.5" storage device
One SATA 6.0Gbps port is reserved for an M.2 stroage module supporting M.2 2242 and M.2 2280 (Key typeM) modules
Note: Supports key type M (PCI Express* x4 and SATA)Peripheral InterfacesUSB 3.1 (Gen2/10 Gbps) Type C ports:
One port is implemented via the external front panel Type C connector
One port is implemented via the external back panel Type C connector
USB 3.1 (Gen2/10 Gbps) Type A ports:
One port is implemented via external front panel connectors (blue)
Two ports are implemented via external back panel connectors (blue)
USB 2.0 ports:
Two ports via two single-port internal 1x4 1.25mm pitch headers (white)
One port is reserved foe the NGFF 1216 Wireless module Bluetooth capability
Consumer Infrared (CIR)
Expansion CapabilitiesOne M.2 connectors supporting M.2 2242 and M.2 2280 (key type M) modules
One Micro SDXC slot
One Thunderbolt 3 via back panel USB Type C connector
BIOSIntel® BIOS resident in the Serial Peripheral Interface (SPI) Flash device
Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS), and Modern Standby
Instantly Available PC TechnologySuspend to RAM support
Wake on PCI Express, LAN, front panel, CIR, and USB ports
LAN Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® I219V Gigabit Ethernet Controller
Hardware Monitor SubsystemHardware monitoring subsystem, based on an embedded controller including:
Voltage sense to detect out of range power supply voltages
Thermal sense to detect out of range thermal values
Evde boşta duruyor. Başlarda evde Altıum cizim için 3-4 ay kullandım.. Almanyadan kuzenım gelirken getirmişti. Faturası yoktur/Garantisi varmıdır, varsa Tr de geçeli olurmu emin değilim....
Bir ara kendimin direkt amazon.com.tr üzerinden aldıgım ve yaklasık 1 ay sonra burdan bir arkadaşa satmıştım. o arkadaş garanti sorgulatmış ve bu urunlerın Almanyadan geldiğinin ve garanti şartlarının tr de geçmediğini belirtmişti. vesselam garantisi yok diye düşünün...
Satışta: Satıcıyla iletişime geçiniz.

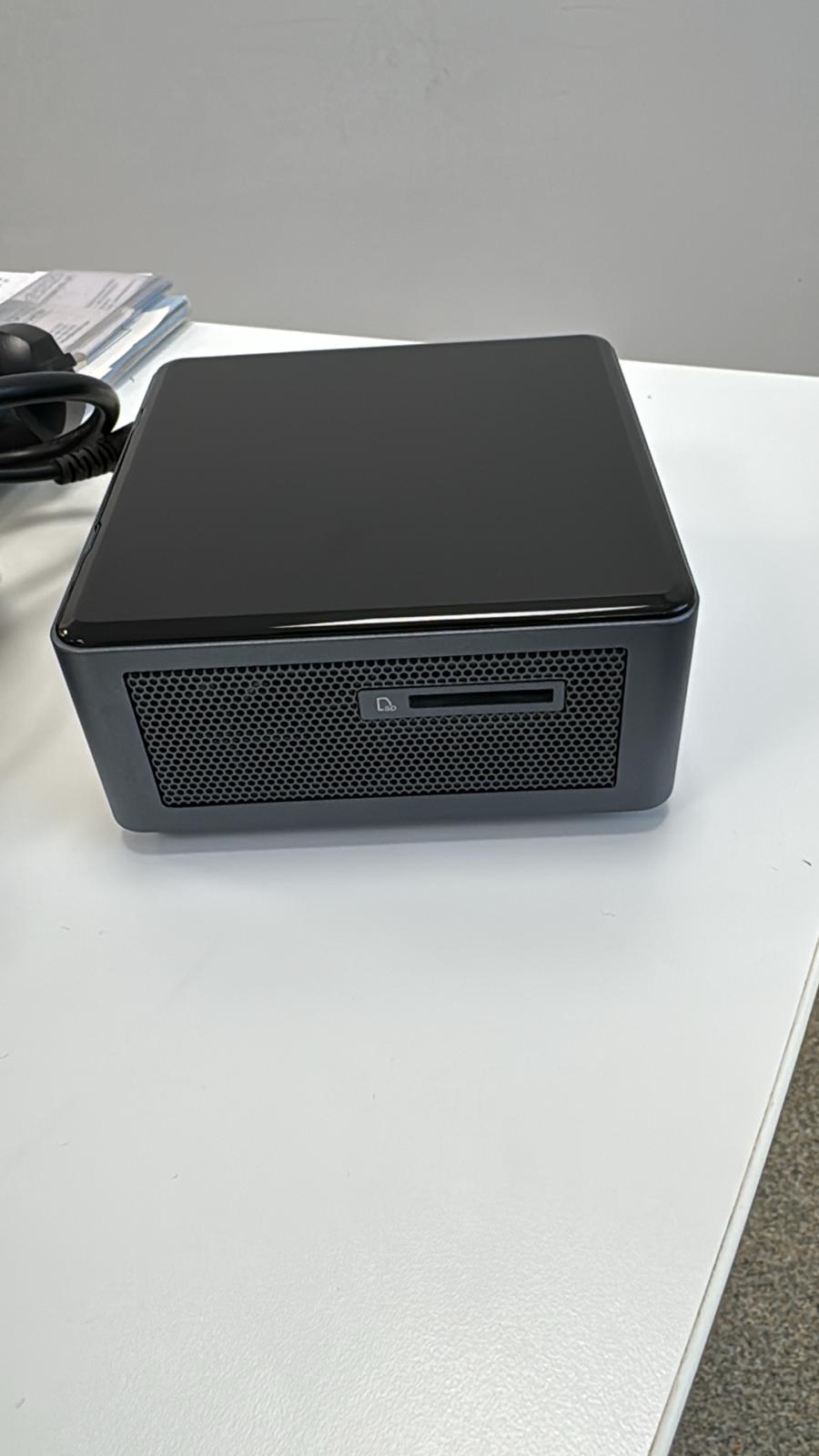

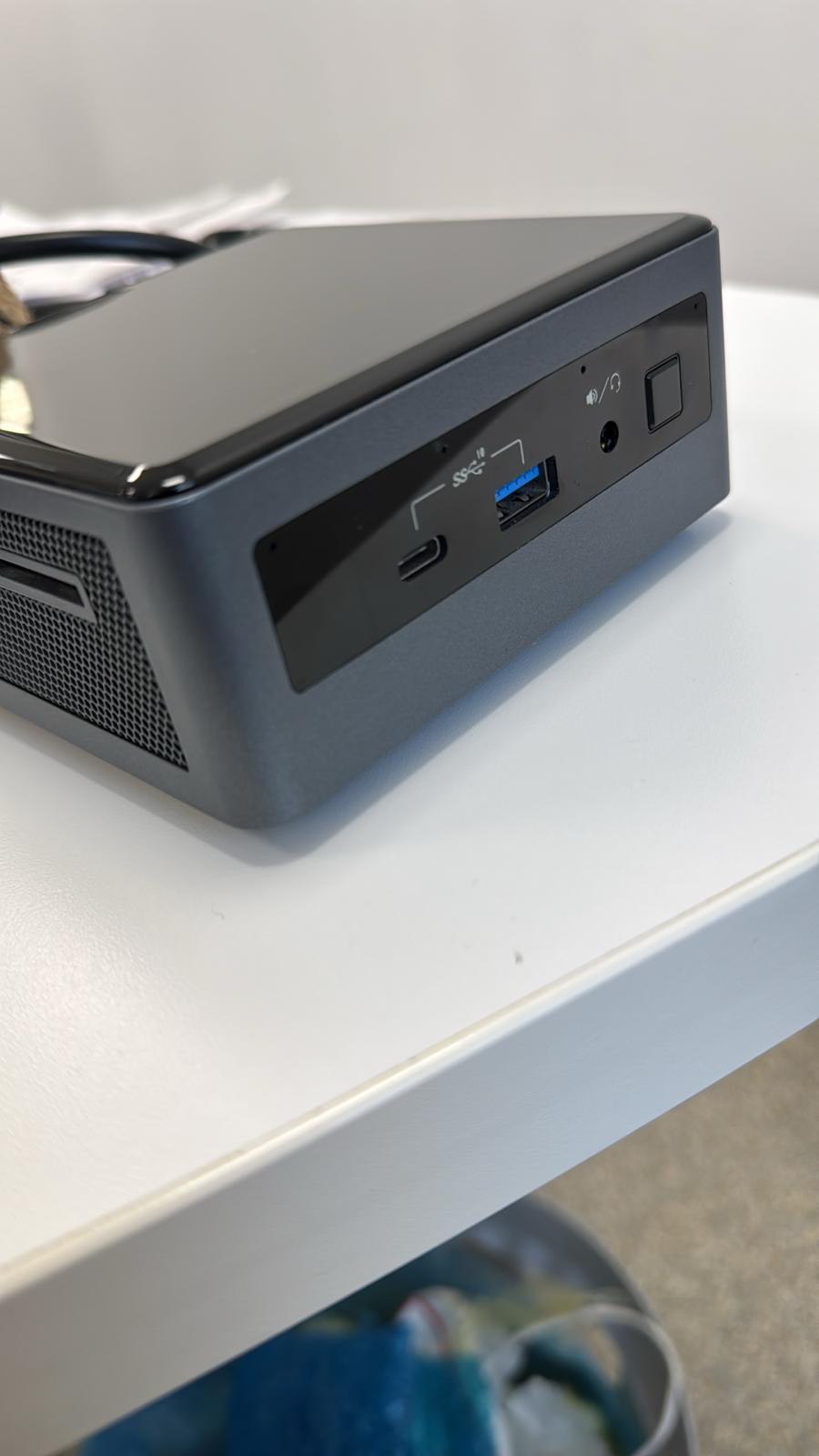

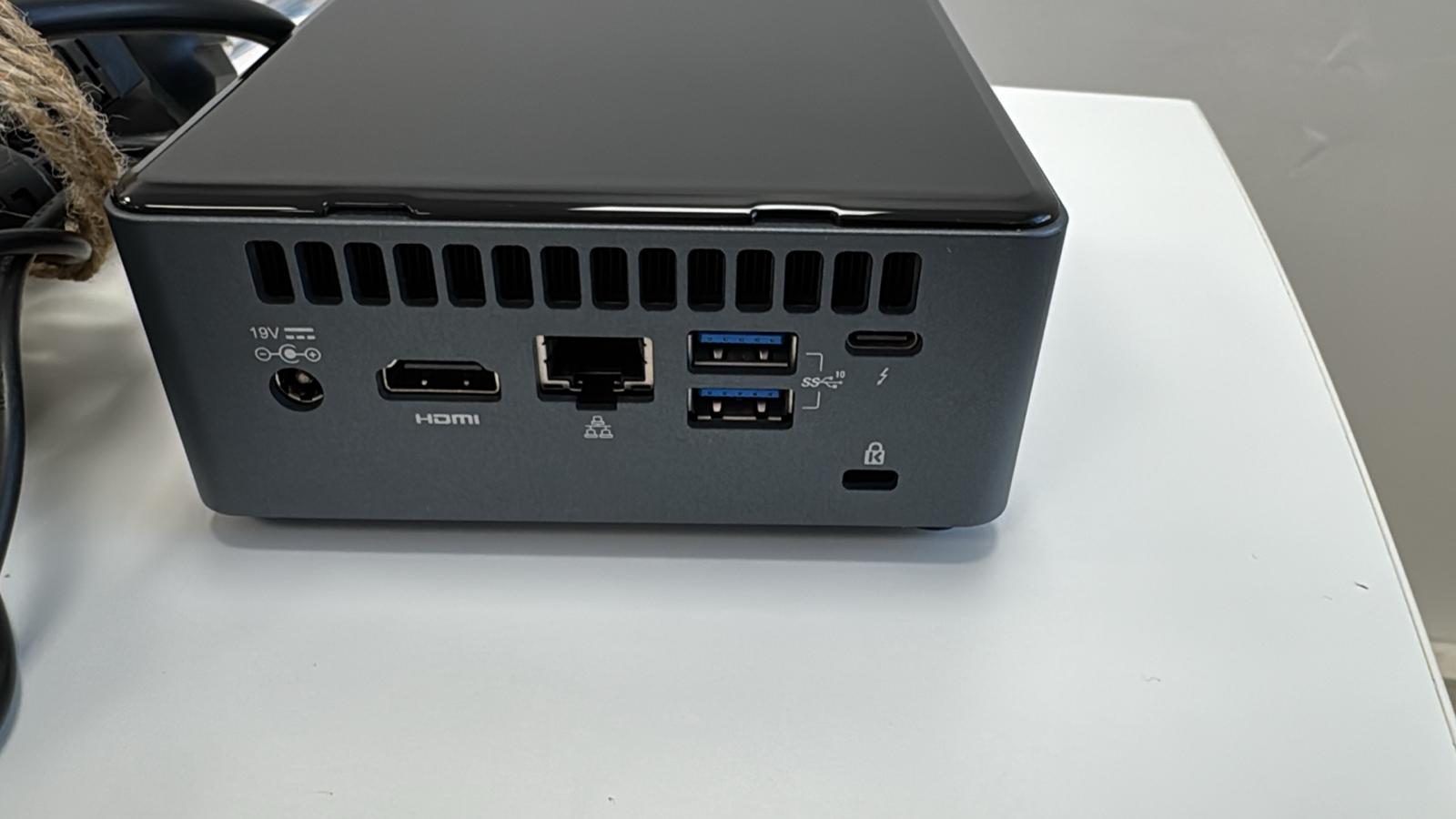

Bu başlık altında yer alan tüm ilanlar; 1 Intel NUC10i5FNH i5-10210U (6M Cache, up to 4.20GHz) İlana Git 27 Eylül 2021 08:58
Intel® Core™ i5-10210U (6M Cache, up to 4.20GHz)
8GB SODIMM DDR4-2666 (up to 64GB),
256Gb M.2 SATA SSD, 1 x 2.5in HDD ,
Sıfıra Yakın bir cihaz.
< Resime gitmek için tıklayın >
< Resime gitmek için tıklayın >
< Resime gitmek için tıklayın >
< Resime gitmek için tıklayın >
- SPECIFICATION ModelBXNUC10I5FNHProcessorA soldered-down 10th generation Intel Core i5-10210U Quad-Core Processor with a maximum 25W TDP, 1.6GHz base , 4.2GHz Turbo, 8Threads
- Intel UHD Graphic
- 6MB Intel Smart Cache
- Integrated memory controller
- Intergrated PCH
- Memory Two 260-pin DDR4 SDRAM Small Outline Dual Inline Memory Module (SO-DIMM) sockets
- Support for DDR4 2666 MHz SO-DIMMs
- Support for 8Gb and 16 Gb memory technology
- Support for up to 64 GB of system memory with two SO-DIMMs using 16GB memory technology
- Support for non-ECC memory
- Support for 1.2 V low voltage JEDEC memory only
- Note: 2Gb and 4Gb memory technology (SDRAM Density) is not compatibleGraphicsIntegrated graphics support for processors with Intel® Graphics Technology
- One High Definition Multimedia Interface* (HDMI*) v2.0b Back panel connectors
- One DisplayPort signal via USB Type C back panel connector
- AudioIntel High Definition (Intel HD) Audio via the HDMI and USB Type C interfaces through the processor
- Realtek HD Audio via a stereo microphone/headphone 3.5mm jack on the front panel
- Digital microphone array (DMICS) connector (Internal)
- StorageSATA Port: One SATA 6.0Gbps port (black) for 2.5" storage device
- One SATA 6.0Gbps port is reserved for an M.2 stroage module supporting M.2 2242 and M.2 2280 (Key typeM) modules
- Note: Supports key type M (PCI Express* x4 and SATA)Peripheral InterfacesUSB 3.1 (Gen2/10 Gbps) Type C ports:
- One port is implemented via the external front panel Type C connector
- One port is implemented via the external back panel Type C connector
- USB 3.1 (Gen2/10 Gbps) Type A ports:
- One port is implemented via external front panel connectors (blue)
- Two ports are implemented via external back panel connectors (blue)
- USB 2.0 ports:
- Two ports via two single-port internal 1x4 1.25mm pitch headers (white)
- One port is reserved foe the NGFF 1216 Wireless module Bluetooth capability
- Consumer Infrared (CIR)
- Expansion CapabilitiesOne M.2 connectors supporting M.2 2242 and M.2 2280 (key type M) modules
- One Micro SDXC slot
- One Thunderbolt 3 via back panel USB Type C connector
- BIOSIntel® BIOS resident in the Serial Peripheral Interface (SPI) Flash device
- Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS), and Modern Standby
- Instantly Available PC TechnologySuspend to RAM support
- Wake on PCI Express, LAN, front panel, CIR, and USB ports
- LAN Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® I219V Gigabit Ethernet Controller
Hardware Monitor SubsystemHardware monitoring subsystem, based on an embedded controller including:- Voltage sense to detect out of range power supply voltages
- Thermal sense to detect out of range thermal values
- One processor fan header
- Fan sense input used to monitor fan activity
- Fan speed control
- WirelessIntel Wi-Fi 6 AX201,802.11ac, Dual Band, 2x2 Wi-Fi + Bluetooth 5
- Maximum Transfer speed up to 2.4 Gbps
- Next Generation Form Factor (NGFF) 12x16 soldered-down package
- Support OFDMA, 1024QAM, Target Wake Time (TWT) and spatial reuse
From FactorUCFF (4" x 4")Sistem Notu : Bu ilan her türlü yoruma açıktır.
